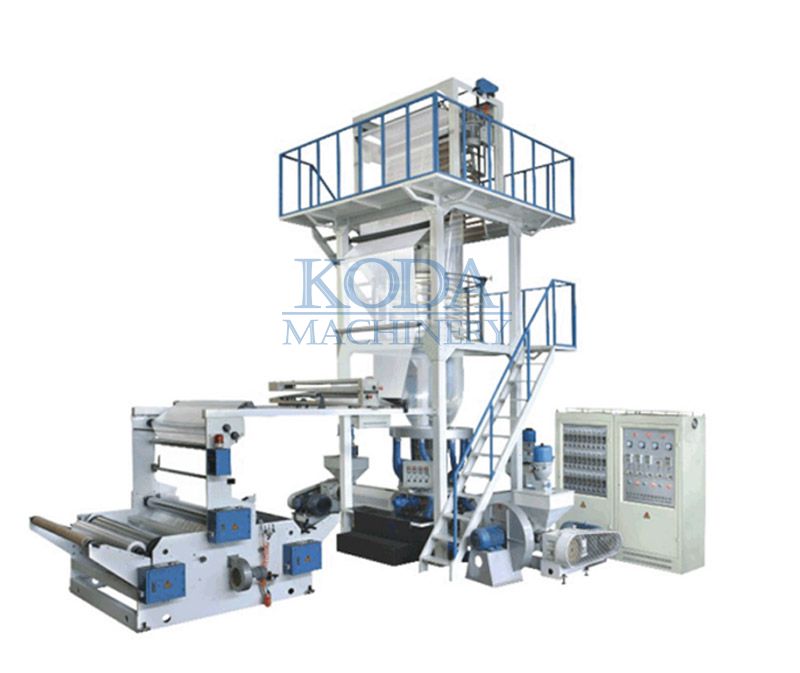

Die head is layer type spiral mandrel, continuous 360, rotation.
Characteristics:
1. Die head is layer type spiral mandrel, continuous 360, rotation.
2. Screen pack changer Design is rational convenience, reliable, safe in operation.
3. Various functional parts may be installed to the lies, such as length counting device, vertical cutting device, cooling water row pipe, film spreading roller, scrap collecting device.
Use:
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s,come up with analogous lines in Home. It is optimum Designed on the grounds of preference of analogous lines in foreign and Home. The lines can be blown continuous 0.02-0.15mm in the thickness packaging films, from LDPE, HDPE, LLDPE, MLLPE, by horizontal extrusion up blown. The film has good in solution, for instance holding temperature, anti-humid, anti-breeze, anti-rain, anti-roust, insulation oxygen, oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding, salt vegetables, fresh milk, drink.
Main Technical Variables:
| Model | 3SJ-G50-1000 | 3SJ-G55-1200 | 3SJ-G60-1500 | 3SJ-G70-1700 |
| Screw Diameter(mm) | ф40/ф50/ф40 | ф45 /ф55/ф45 | Ф50 /ф60/ф50 | Ф60 /ф70/ф60 |
| Screw Ratio(L/D) | 30:1 | 30:1 | 30:1 | 30:1 |
| Screw Speed(r/min) | 110 | 110 | 110 | 110 |
| Power of Main Motor(kw) | 11/15/11 | 11/18.5/11 | 15/22/15 | 22/30/22 |
| Range of Die(mm) | ¢250 | ¢300 | ¢350 | ¢450 |
| single-sided Thickness of Film(mm) | 0.02-0.15 | 0.02-0.15 | 0.03-0.15 | 0.05-0.20 |
| Max.Folding Width of Film(mm) | 1000 | 1200 | 1500 | 1700 |
| Electric Total Capacity(kw) | 66 | 75 | 86 | 102 |
| Weight of Machine(kg) | 4200 | 5300 | 6200 | 7400 |
| Overall Dimensions(L*W*H)(m) | 6.6*2.8*5 | 6.8*3*6 | 7*3.2*6.8 | 7.3*4*8 |
