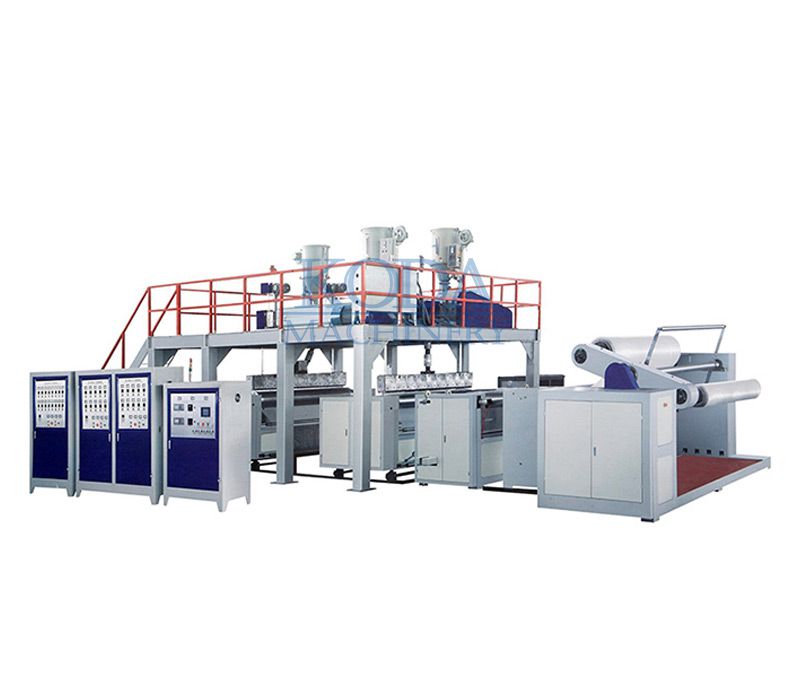

This machine is composed of extruders, air bubble forming equipment, perforation device, Edge trimmed collecting device, cutting device, winding device and cabinet control system.
This machine is composed of extruders, air bubble forming equipment, perforation device, Edge trimmed collecting device, cutting device, winding device and cabinet control system.
It adopts the LDPE and LLDPE to produce the air bubble film products, which are widely used as courier packages, precise instruments packages, furniture packages, auto parts packages, etc.
Main Technical Variables:
| Model | GDFPE--2000 | GDFPE-2500 | GDFPE--3000 |
| Diameter of Screw | φ75mm, φ75mm, φ75mm | φ90mm, φ80mm, φ80mm | φ105mm, φ95mm, φ95mm |
| L/D Ration of screw | 30:1(L/D) | 30:1(L/D) | 30:1(L/D) |
| Material of Screw & Barrel | 38CRMOALA | 38CRMOALA | 38CRMOALA |
| Main motor | 22kw, 22kw, 22kw | 37kw, 30kw, 30kw | 45kw, 37kw, 37kw |
| Total Power | 215kw | 284kw | 340kw |
| Max.Capacity | 110 kg/h | 150 kg/h | 200 kg/h |
| Linear Speed | 700 m/h | 600 m/h | 600 m/h |
