GDFPE-2200/2800/3000 Polyethylene Bubble Film Machine

Share:
photoes
Application
Product video
materials

BRIEF

Bubble film machine adopts once-through shaping technique, thus has high efficiency and excellent product quality. This machine set has such features as scientific and reasonable structure design, smooth and reliable running and convenient operation and maintenance. Polyethylene air-cushion film (also called polyethylene bubble film), which is divided into two kind: ordinary polyethylene air-cushion film and composite polyethylene air-cushion film, is a kind of packing material which has been widely used at present. It not only has good cushioning effect, shock resistance and heat-sealing performance, but also has such advantages as good corrosion resistance and transparency, etc. So it has been widely used for packing, household wares, post parcel, bicycle, polyurethane furniture, etc.

Use one exturder can produce two layer, use two extruders can produce three layer.

Add one rewinder part, can compound one layer EPE or aluminum foil, add two rewinder part can compound two layer EPE or Aluminum foil.


Optional Equipments:

1) Rewinder I (produce four layer)

2) Rewinder I + Rewinder II (produce five layer)

3) Auto loader

4) Auto dryer

5) Electric screen net changer

6) Air shaft roller (if you want to use paper tube)

7) Bubble roller (different bubble size from the one install in the machine)


Material: LDPE

You can use new material, also can use recycled material.

If you want to produce color bubble film, you can add color masterbatch.

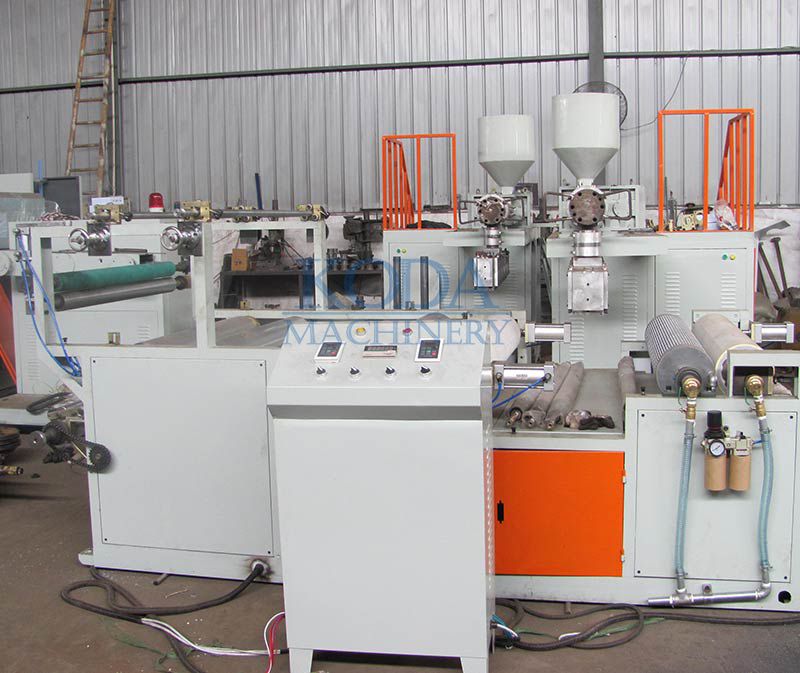

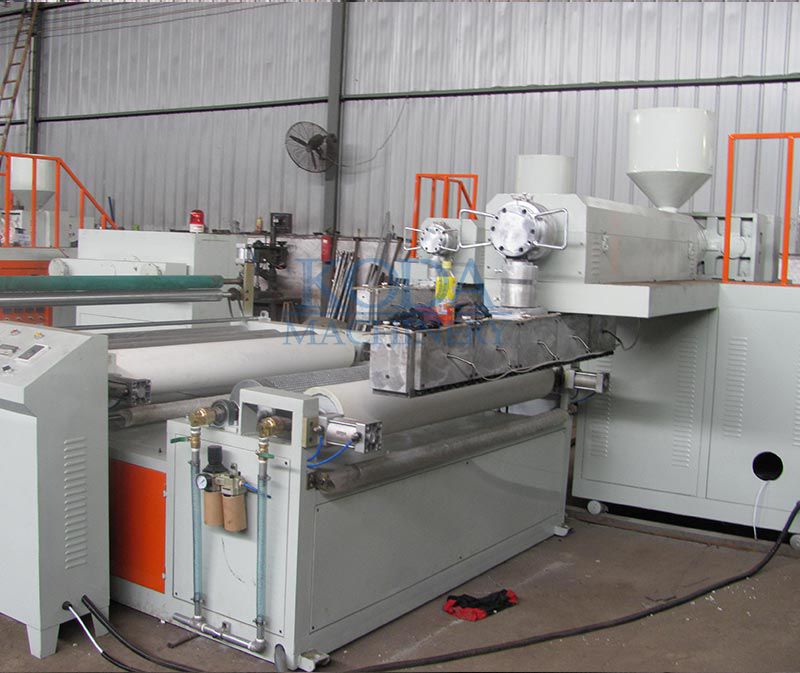

GDFPE-1000 Polyethylene Bubble Film Machine

GDFPE-1000 Polyethylene Bubble Film Machine


GDFPE-1000 Polyethylene Bubble Film Machine


Main Technical Variables:

ModelGDFPE-2200GDFPE-2800GDFPE-3000
Diameter of Screw Stemφ95mm, φ75mmφ110mm, φ85mmφ120mm, φ100mm
L/D Ratio of Screw28:1(L/D)28:1(L/D)28:1(L/D)
Material of Scerw & Barrel38 CrMoALA
Width of T-die Head2300mm2900mm3100mm
Heating WayCasting-aluminum heating device
Width of Bubble Roller2280mm2880mm3080mm
Width of Products2200mm2800mm3000mm
Thickness0. 06-0. 30mm0. 06-0. 30mm0. 06-0. 30mm
Main Motor37kw, 18.5kw55kw, 30kw55kw, 37kw
Tractiong Motor2.2kw*22.2kw*22.2kw*2
Total Power162kw225kw250kw
RewinderTurnover duplex turret rewinding type
Max. Output220 kg/h250 kg/h260 kg/h
Linear Speed600 m/h600 m/h600 m/h
