GDPE-1800/2000/2500/3000 Polyethylene Bubble Film Machine

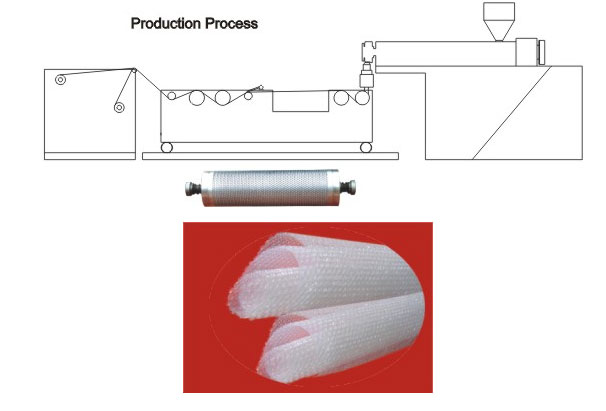

This machine adopts once-through shaping technique, thus has high efficiency and excellent product quality.

Share:
photoes
Application
Product video
materials

BRIEF:

This machine adopts once-through shaping technique, thus has high efficiency and excellent product quality. This machine set has such features as scientific and reasonable structure design, smooth and reliable running and convenient operation and maintenance. Polyethylene air-cushion film (also called polyethylene bubble film), which is divided into two kind: ordinary polyethylene air-cushion film and composite polyethylene air-cushion film, is a kind of packing material which has been widely used at present. It not only has good cushioning effect, shock resistance and heat-sealing performance, but also has such advantages as good corrosion resistance and transparency, etc. So it has been widely used for packing, household wares, post parcel, bicycle, polyurethane furniture, etc.


Material: LDPE

You can use new material, also can use recycled material.

If you want to produce color bubble film, you can add color masterbatch.


GDPE-1000 Polyethylene Bubble Film Machine

GDPE-1000 Polyethylene Bubble Film Machine


GDPE-1000 Polyethylene Bubble Film Machine


Optional Equipments:

1) Auto Loader

2) Auto Dryer

3) Motorize Net Changer

4) Air Shaft


Main Technical Variables:

ModelGDPE-1800GDPE-2000GDPE-2500GDPE-3000
Diameter of Screw Stemφ90 mmφ95mmφ120mmφ120mm
L/D Ratio of Screw28:1
Material of Scerw & Barrel38 CrMoALA
Width of T-die Head1900 mm2100mm2600mm3100mm
Heating WayCasting-aluminum heating device
Width of Bubble Roller1880 mm2080mm2580mm3080mm
Width of Products1800 mm2000mm2500mm3000mm
Thickness0. 15-0. 5 mm0. 06-0. 25mm0. 06-0. 25mm0.06-0.25mm
Main Motor30 kw37kw45kw55kw
Tractiong Motor2.2 kw3kw3kw3kw
Total Power86 kw95kw117kw138kw
RewinderTurnover duplex turret rewinding type
Max. Output120 kg/h150 kg/h170 kg/h200kg/h
Linear Speed900 m/h800 m/h650 m/h600m/h
