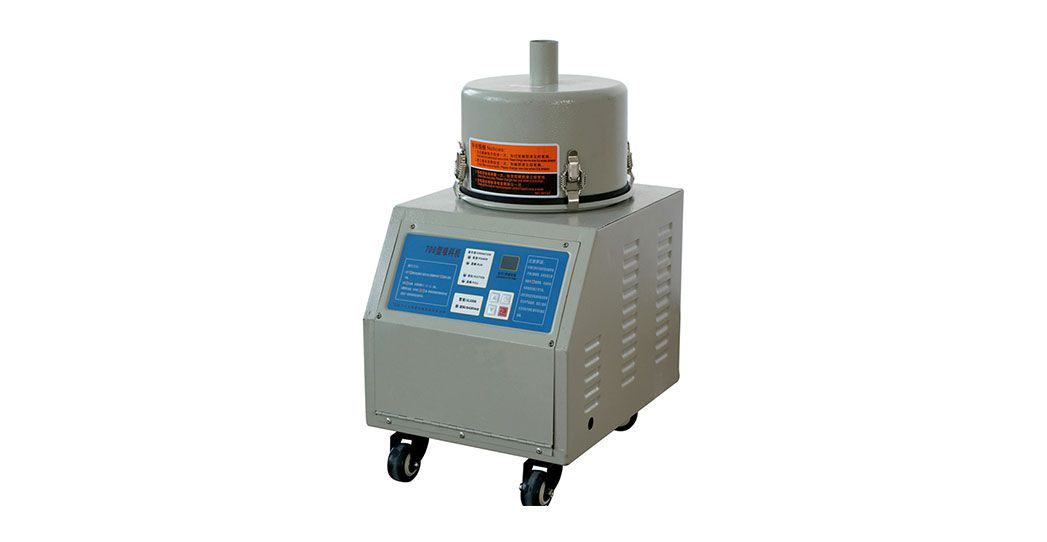

700GN Split Style Auto Loader

The main engine and the material hopper are designed separately, and thus it is safe, easy and convenient to be operated.

Share:
photoes
Application
Product video
700GN Split Style Auto Loader
materials

Features:

1、The main engine and the material hopper are designed separately, and thus it is safe, easy and convenient to be operated.

2、The whole operation is controlled by Micro Trip computer.

3、Equipped with an independent filter, which is very convenient to clean up dust.

4、The equipped muffler reduces the noise in operation.

5、Stainless steel material hopper is light in weight, and very convenient for cleaning the device.

6、The control box, being designed separately, is easy to be well maintained.

7、Auto-buzzer will give alarm while lacking material.

8、Auto-protective device protects motor against overloading


Model700GN
MotorTypeCarbon Brush
Specification1100w1Φ
Conveying Capacity400kg/hr
Static wind pressure1500mmAq
FilterΦ185x115H
Volume of Material Hopper5.5L
Inside  Diameter of Conveying PipeΦ38mm
ExternalMain Body LWH480x310x430mm
Material Hopper LWH430x440x295mm
WeightMain Body15.5kg
Material hopper5kg
